KOMPASS康百世油壓開關APSH-60 壓力繼電器保護APSG-60 275-1 125

轉動方向：順時針?lè)较颍▍草S端看）為標準品、僅有此轉向?；剞D(zhuǎn)方向的確認可由瞬間起動電機來檢查。
液壓油：7MPa以下，使用40℃時粘度20～50cSt(ISOVG32)的液壓油
泄油管壓力：泄油管一定要直接插到油箱的油面下，而配光所產生的背壓，請維持在0.03MPa以下。
工作油溫：連續運轉的溫度為15～60℃
軸心配合：泵軸與馬達之偏心誤差為0.05mm，角度誤差為1°
吸油壓力：吸油口的壓力為-0.03MPa～0.03MPa
排量調整：排量調整時，先放松調節螺帽，再旋轉調整螺栓，右轉減少流量，而左轉則增加，調整完畢，請上緊螺帽。
壓力調整：左轉（逆時針?lè)较颍毫φ{(diào)整螺栓，使輸出壓力降低，右轉（順時針?lè)较颍﹦t升高，調整完畢，請上緊螺帽
新機運轉：新機開始運轉時，應在無壓力的狀態下反復起動電機馬達，以排出泵內和吸油管中的空氣，為確保系統內的空氣排除，可在無負載的狀態下連續運轉10分鐘

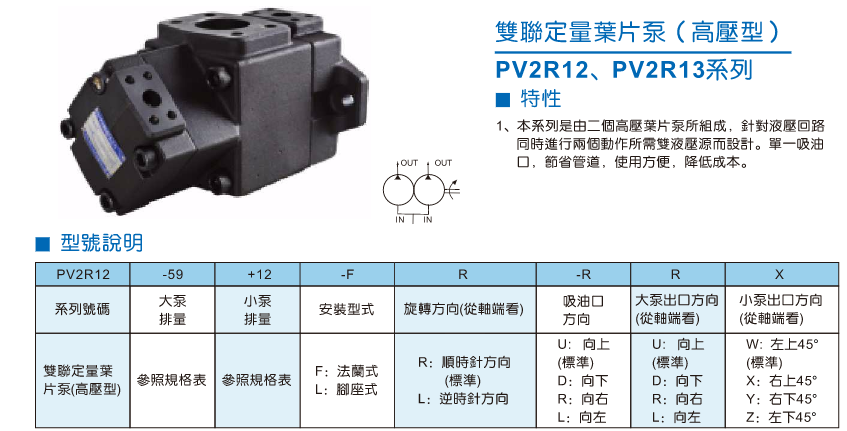

雙聯定量葉片泵(高壓型)PV2R12、PV2R13系列特性
1、本系列是由二個高壓葉片泵所組成，針對液壓回路
同時進行兩個動作所需雙夜壓源而設計。單- -吸油口，節省管道，使用方便，降低成本。
液壓油保養管理對策
1. 使用溫度在70度以下，可能的話最好在60度以下，特別是在高壓的情況下從溢流閥流回的工作油溫度很高，或用加熱器局部加熱等均須十分注意。
2.要控制污染，因工作油的污染物質有時會變成觸媒，加速氧化。
3. 避免水分混入工作油內，因水會使工作質。水分太多時會使工作油乳化。
4.  不同制造的工作油不可混用，還有制造，但品名及等級不同的工作油須避免混用。因會引起油中添加劑的劣化。
5. 要控制油壓機器及配管的漏油，使泄油量達到最小。
6. 工作油要定期檢查。
7.  已經開始劣化的工作油，補充新油并不能延長使用壽命，應予全部換新。

臺灣KOMPASS康百世V系列變量柱塞泵
V15A1R10X V15A2R10X V15A3R10X V15A4R10X V15A1L10X V15A2L10X V15A3L10X V15A4L10X
V18A1R10X V18A2R10X V18A3R10X V18A4R10X V18A1L10X V18A2L10X V18A3L10X V18A4L10X
V23A1R10X V23A2R10X V23A3R10X V23A4R10X V23A1L10X V23A2L10X V23A3L10X V23A4L10X
V38A1R10X V38A2R10X V38A3R10X V38A4R10X V38A1L10X V38A2L10X V38A3L10X V38A4L10X
V50A1R10X V50A2R10X V50A3R10X V50A4R10X V50A1L10X V50A2L10X V50A3L10X V50A4L10X
V70A1R10X V70A2R10X V70A3R10X V70A4R10X V70A1L10X V70A2L10X V70A3L10X V70A4L10X

臺灣KOMPASS康百世AR系列變量柱塞泵
AR16-FR01C AR16-FR01B AR16-LR01C AR16-LR01B AR22-FR01C AR22-FR01B AR22-LR01C
AR22-LR01B AR16-FR01CK AR16-FR01BK AR16-LR01CK AR16-LR01BK AR22-FR01CK AR22-LR01CK
AR22-FR01BS AR22-LR01CS AR22-LR01BS AR22-FR01BK AR22-LR01BK AR16-FR01CS AR16-FR01BS
AR16-LR01CS AR16-LR01BS AR22-FR01CS

臺灣KOMPASS康百世定量葉片泵
50T-07-FR 50T-07-LR 50T-12-FR 50T-12-LR 50T-14-FR 50T-14-LR 50T-17-FR 50T-17-LR
50T-20-FR 50T-20-LR 50T-23-FR 50T-23-LR 50T-26-FR 50T-26-LR 50T-30-FR 50T-30-LR
50T-36-FR 50T-36-LR 50T-39-FR 50T-39-LR 150T-48-FR 150T-48-LR 150T-61-FR 150T-61-LR
150T-75-FR 150T-75-LR 150T-94-FR 150T-94-LR 150T-116-FR 150T-116-LR

臺灣KOMPASS康百世定量葉片泵

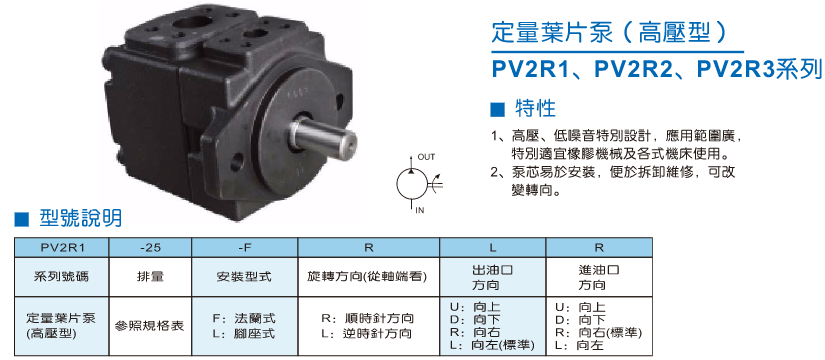

PV2R1-06-FR PV2R1-08-FR PV2R1-10-FR PV2R1-12-FR PV2R1-14-FR PV2R1-17-FR PV2R1-18-FR
PV2R1-23-FR PV2R1-25-FR PV2R1-31-FR PV2R2-33-FR PV2R2-41-FR PV2R2-47-FR PV2R2-53-FR
PV2R2-59-FR PV2R2-65-FR PV2R2-76-FR PV2R2-94-FR PV2R2-116-FR PV2R1-06-LR PV2R1-08-LR
PV2R1-10-LR PV2R1-12-LR PV2R1-14-LR PV2R1-17-LR PV2R1-18-LR PV2R1-23-LR PV2R1-25-LR
PV2R1-31-LR PV2R2-33-LR PV2R2-41-LR PV2R2-47-LR PV2R2-53-LR PV2R2-59-LR PV2R2-65-LR
PV2R2-76-LR PV2R2-94-LR PV2R2-116-LR

中高壓變量葉片泵:
VA1-08F-A1 VA1-08F-A2 VA1-08F-A3 VA1-12F-A1 VA1-12F-A2 VA1-12F-A3 VA1-15F-A1 VA1-15F-A2 VA1-15F-A3 VA1-15F-A3
VA1A1-0808F-A1 VA1A1-0808F-A2 VA1A1-0808F-A3 VA1A1-1212F-A1 VA1A1-1212F-A2 VA1A1-1212F-A3 VA1A1-1215F-A1
VA1A1-1215F-A2 VA1A1-1215F-A3
VB1-20F-A1 VB1-20F-A2 VB1-20F-A3 VB1-24F-A1 VB1-24F-A2 VB1-24F-A3
VB1B1-2020F-A1 VB1B1-2020F-A2 VB1B1-2020F-A3 VB1B1-2424F-A1 VB1B1-2424F-A2 VB1B1-2424F-A3
VB3-20F-A1 VB3-20F-A2 VB3-20F-A3 VB3-20F-A4
VC1-26F-A1 VC1-26F-A2 VC1-26F-A3
VD1-25F-A1 VD1-25F-A2 VD1-25F-A3 VD1-30F-A1 VD1-30F-A2 VD1-30F-A3
VD1D1-2525F-A1 VD1D1-2525F-A2 VD1D1-2525F-A3 VD1D1-3030F-A1 VD1D1-3030F-A2 VD1D1-3030F-A3
VD2-20F-A2 VD2-20F-A3 VD2-20F-A4 VD2-25F-A2 VD2-25F-A3 VD2-25F-A4 VD2-30F-A2 VD2-30F-A3 VD2-30F-A4
VD3-25F-A1 VD3-25F-A2 VD3-25F-A3 VD3-25F-A4 VD3-30F-A1 VD3-30F-A2 VD3-30F-A3 VD3-30F-A4
VE1-40F-A1 VE1-40F-A2 VE1-40F-A3 VE1-45F-A1 VE1-45F-A2 VE1-45F-A3
VE1E1-4040F-A1 VE1E1-4040F-A2 VE1E1-4040F-A3 VE1E1-4545F-A1 VE1E1-4545F-A2 VE1E1-4545F-A3
VE2-40F-A2 VE2-40F-A3 VE2-40F-A4
VE3-40F-A1 VE3-40F-A2 VE3-40F-A3 VE3-40F-A4
VF2-54F-A2 VF2-54F-A3 VF2-54F-A4
VF3-54F-A1 VF3-54F-A2 VF3-54F-A3 VF3-54F-A4
VK2-70F-A2 VK2-70F-A3 VK2-70F-A4 VK2-86F-A2 VK2-86F-A3 VK2-86F-A4
VK3-70F-A1 VK3-70F-A2 VK3-70F-A3 VK3-70F-A4 VK3-86F-A1 VK3-86F-A2 VK3-86F-A3 VK3-86F-A4
高壓變量柱塞泵:
PVS08,PVS16,PVS22,PVS36,PVS46,PVS70,PVS100.
 PVS08-A4-F-R,PVS08-A3-F-R,PVS08-A2-F-R,PVS08-A1-F-R,PVS08-A0-F-R.
 PVS16-A4-F-R,PVS16-A3-F-R,PVS16-A2-F-R,PVS16-A1-F-R,PVS16-A0-F-R.
 PVS22-A4-F-R,PVS22-A3-F-R,PVS22-A2-F-R,PVS22-A1-F-R,PVS22-A0-F-R.
 PVS36-A4-F-R,PVS36-A3-F-R,PVS36-A2-F-R,PVS36-A1-F-R,PVS36-A0-F-R.
 PVS46-A4-F-R,PVS46-A3-F-R,PVS46-A2-F-R,PVS46-A1-F-R,PVS46-A0-F-R.
 PVS70-A4-F-R,PVS70-A3-F-R,PVS70-A2-F-R,PVS70-A1-F-R,PVS70-A0-F-R.
 PVS100-A4-F-R,PVS100-A3-F-R,PVS100-A2-F-R,PVS100-A1-F-R,PVS100-A0-F-R

KOMPASS電磁閥部分型號：

D5-02-2B2B，、D5-02-3C2，、D5-02-3C4，、D4-02-3C4,、D4-03-2B2.、

臺灣KOMPASS液控單向閥
MPA-04B 、MPA-03A   、MPA-03B  、MPA-03C、MPA-04A   、MPA-04B  、MPA-04C、MPA-06A   、MPA-06B  、MPA-06A、

臺灣KOMPASS減壓閥：
MRP-02A-H 、MRP-02B-H 、MRP-02C-H 、MRP-02H-H、MRP-03-A-H 、MRP-03-B-H 、MRP-03-C-H 、MRP-03-H-H、、MRB-06-A-H 、MRB-06-B-H 、

臺灣KOMPASS疊加式減壓閥、MRB-03-A-H 、MRB-03-B-H 、MRB-03-C-H 、MRB-03-H-H、

手動換向閥
DMT-03-W-2B2 DMT-04-W-2B2 DMT-06-W-2B2 DMT-10-W-2B2 DMG-02-W-2B2 DMG-03-W-2B2
DMT-03-W-3C2 DMT-04-W-3C2 DMT-06-W-3C2 DMT-10-W-3C2 DMG-02-W-3C2 DMG-03-W-3C2
DMT-03-W-3C3 DMT-04-W-3C3 DMT-06-W-3C3 DMT-10-W-3C3 DMG-02-W-3C3 DMG-03-W-3C3
DMT-03-W-3C4 DMT-04-W-3C4 DMT-06-W-3C4 DMT-10-W-3C4 DMG-02-W-3C4 DMG-03-W-3C4
DMT-03-W-3C6 DMT-04-W-3C6 DMT-06-W-3C6 DMT-10-W-3C6 DMG-02-W-3C6 DMG-03-W-3C6

背壓閥
MCAG-06,MCAG-06-B,MCAG-06-C,MCAG-06-H,
MCAG-10,MCAG-10-B,MCAG-10-C,MCAG-10-H.

單向閥
CRG-03-A1 CRG-06-A1 CRG-10-A1 CIT-03-A1 CIT-04-A1 CIT-06-A1 CIT-08-A1 CIT-10-A1 CIT-12-A1
CRG-03-A2 CRG-06-A2 CRG-10-A2 CIT-03-A2 CIT-04-A2 CIT-06-A2 CIT-08-A2 CIT-10-A2 CIT-12-A2
CRNG-03-A1 CRNG-06-A1 CRNG-10-A1 CRNG-03-A2 CRNG-06-A2 CRNG-10-A2 CIT-16-A1 CIT-16-A2

疊加式單向閥
MCP-02-B MCP-03-B MCP-04-B MCP-06-B MCA-02-B MCA-03-B MCB-02-B MCB-03-B
MCT-02-B MCT-03-B MCT-04-B MCT-06-B MCW-02-B MCW-03-B MCW-03-B MCW-02-B
疊加式液控單向閥
MPW-02-B MPW-03-B MPW-04-B MPW-06-B MPDA-03-B MPDB-03-B MPDW-03-B
MPA-02-B MPA-03-B MPA-04-B MPA-06-B MPB-02-B MPB-03-B MPB-04-B MPB-06-B
標準型油路塊
MMCA-02-3 MMCA-03-3 MMCB-02-3 MMCB-03-3 梭動閥SHT-02
直入式溢流插裝閥
CVB-M-50-6-H-D4-A25 CVB-M-40-6-H-D5-A25
CVB-M-16-6-H-D4-A25 CVB-M-25-6-H-D4-A25 CVB-M-32-6-H-D4-A25 CVB-M-40-6-H-D4-A25
CVB-M-16-6-H-D5-A25 CVB-M-25-6-H-D5-A25 CVB-M-32-6-H-D5-A25 CVB-M-40-6-H-D5-A25
電磁換向閥
D5-02-3C2,D5-02-2B2,D5-02-3,D5-02-3C60,D5-02-2D2,
D5-03-3C2,D5-03-2B2,D5-03-3,D5-03-3C60,D5-03-2D2.
D4-02-3C2,D4-02-2B2,D4-02-3,D4-02-3C60,D4-02-2D2,
D4-03-3C2,D4-03-2B2,D4-03-3,D4-03-3C60,D4-03-2D2.
D5-02-2B2B D5-02-2B3B D5-02-2B4B D5-02-2B5B D5-02-2B40B D5-02-2B60B
D5-02-2B2-A25 D5-02-2B2-A15 D5-02-2B2-A35 D5-02-2B2-D1 D5-02-2B2-D2
D5-02-2B3-A25 D5-02-2B3-A15 D5-02-2B3-A35 D5-02-2B3-D1 D5-02-2B3-D2
D5-02-2B8-A25 D5-02-2B8-A15 D5-02-2B8-A35 D5-02-2B8-D1 D5-02-2B8-D2
卸荷溢流閥
BUCG-06-B-G BUCG-06-C-G BUCG-06-H-G
DB系列先導式溢流閥
DB-03-1 DB-03-3 DB-06-1 DB-06-3 DB-10-1 DB-10-3
管式單向節流閥
TVC-02 TVC-03 TVC-04 TVC-06 TVL-03 TVH-03 TVH-04
電磁控制調速閥
THF-06 THF-10 SF-06 SF-10 SDF-06 SDF-10 SFD-10 SD-06 SKF-06
加強型先導式溢流閥
BHG-06-B-G BHG-06-C-G BHG-06-H-G BHG-10-B-G BHG-10-C-G BHG-10-H-G
VOP潤滑泵
VOP-203-A2-F-RV VOP-204-A2-F-RV VOP-206-A2-F-RV VOP-208-A2-F-RV VOP-210-A2-F-RV
VOP-212-A2-F-RV VOP-216-A2-F-RV VOP-220-A2-F-RV
HV-03-0-3C2 CPD-03-A1-T-D CPD-04-A1-T-D CPD-06-A1-T-D CPD-10-A1-T-D CPD-16-A1-T-D
機械式換向閥
DCG-02-NC-A DCG-02-NC-B DCG-02-NC-C DCG-02-NO-A DCG-02-NO-B DCG-02-NO-C
DCT-02-NC-A DCT-02-NC-B DCT-02-NC-C DCT-02-NO-A DCT-02-NO-B DCT-02-NO-C

壓力繼電器部分型號：
JCD-02S JCS-02N JCS-02NL JCS-02NLL
JPS-02HM JPS-02L JPS-02LL
MJCS-02P-N MJCS-02A-N MJCS-02B-N MJCS-02W-N MJCS-02-P-L MJCS-02-A-L MJCS-02-B-L
MJCS-02-W-L MJCS-02P-LL MJCS-02A-LL

APSA-150-1 APSA-150-2 APSA-150-3 APSA-150-4 APSA-230-1 APSA-230-2 APSA-230-3
APSA-230-4 APSA-35-1 APSA-35-2 APSA-35-3 APSA-35-4 APSA-420-1 APSA-420-2 APSA-420-3
APSA-420-4 APSA-70-1 APSA-70-2 APSA-70-3 APSA-70-4 APSB-150-1
APSB-150-2 APSB-150-3 APSB-150-4 APSB-230-1 APSB-230-2 APSB-230-3 APSB-230-4 APSB-35-1
APSB-35-2 APSB-35-3 APSB-35-4 APSB-420-1 APSB-420-2 APSB-420-3 APSB-420-4 APSB-70-1
APSB-70-2 APSB-70-3 APSB-70-4 APSC-125-1
APSC-125-2 APSC-125-3 APSC-125-4 APSC-275-1 APSC-275-2 APSC-275-3 APSC-275-4
APSC-400-1 APSC-400-2 APSC-400-3 APSC-400-4 APSC-60-1 APSC-60-2 APSC-60-3 APSC-60-4
APSD-40-1 APSD-40-2 APSD-40-3 APSD-40-4
APSE-125-1 APSE-125-2 APSE-125-3 APSE-125-4 APSE-275-1 APSE-275-2 APSE-275-3
APSE-275-4 APSE-400-1 APSE-400-2 APSE-400-3 APSE-400-4 APSE-60-1 APSE-60-2 APSE-60-3 APSE-60-4
APSF-125-1 APSF-125-2 APSF-125-3 APSF-125-4 APSF-275-1 APSF-275-2 APSF-275-3 APSF-275-4
APSF-400-1 APSF-400-2 APSF-400-3 APSF-400-4 APSF-60-1 APSF-60-2 APSF-60-3 APSF-60-4
APSG-125-1 APSG-125-2 APSG-125-3 APSG-125-4 APSG-275-1 APSG-275-2 APSG-275-3 APSG-275-4
APSG-60-1 APSG-60-2 APSG-60-3 APSG-60-4
APSH-125-1 APSH-125-2 APSH-125-3 APSH-125-4 APSH-275-1 APSH-275-2 APSH-275-3
APSH-275-4 APSH-60-1 APSH-60-2 APSH-60-3 APSH-60-4
